Split Type Parking Sensor Parking Space Indicator Light RGB LED Detector PGS

Name: Split Type Parking Sensor Parking Space Indicator Light RGB LED Detector PGS
Brand: wanbo
Price: 1 USD

China Split Type Parking Sensor Parking Space Indicator Light RGB LED Detector PGS wholesale

Brand Name : wanbo

Model Number : WBP-LED01

Place of Origin : China

Certification : CE / IS09001

MOQ : 1Set

Price : Negotiation

Delivery Time : 7-15 working day

Payment Terms : L/C, T/T

Supply Ability : 1 ~ 5000 piece 30days

Packaging Details : 57*43*39cm

Specification and Dimension : φ120*45mm

Net Weight : 100g

Material Quality : ABS engineering plastic

Color Instructions : Red and green double color highlight LED

Mounting Height : 1.5-4 m (same level as detector)

Working Voltage : DC 5V

Working Temperature : -30℃～+75℃

Power Dissipation : <0.5 W

Color : 7 colors

Contact Now

Parking Sensor Split Type Parking Space Indicator Light RGB LED Detector PGS

Parameter

Model	WBP-LED01
Specification and Dimension	φ120*45mm
Net Weight	100g
Material Quality	ABS engineering plastic
Color Instructions	Red and green double color highlight LED
Mounting Height	1.5-4 m (same level as detector)
Working Voltage	DC 5V

Working Temperature	-30℃～+75℃
Ambient Humidity	90% RH (no condensation)
Power Dissipation	<0.5 W
Visual Range	30m

Product profile

The parking space indicator light is installed directly in front of each parking space, and is directly controlled by the ultrasonic parking space detector, which displays different colors according to the instructions of the detector. The indicator light is green when there is no vehicle parked on the parking space, and red when the vehicles are parked.

Split Type Parking Sensor Parking Space Indicator Light RGB LED Detector PGS

Product features

Unique appearance design, simple atmosphere;
The state indicator light adopts high bright LED, long service life, long visual distance, wide view;
The color change of the indicator light is controlled by the power carrier mode, only 2 core power lines can work, and the construction wiring is simple.

Product installation

The split parking space indicator light is installed between 1.5 meters and 4.0 meters directly above the parking space, and the recommended installation height is 2.5 meters. The installation diagram is shown in Figure 4.1:

Split Type Parking Sensor Parking Space Indicator Light RGB LED Detector PGS

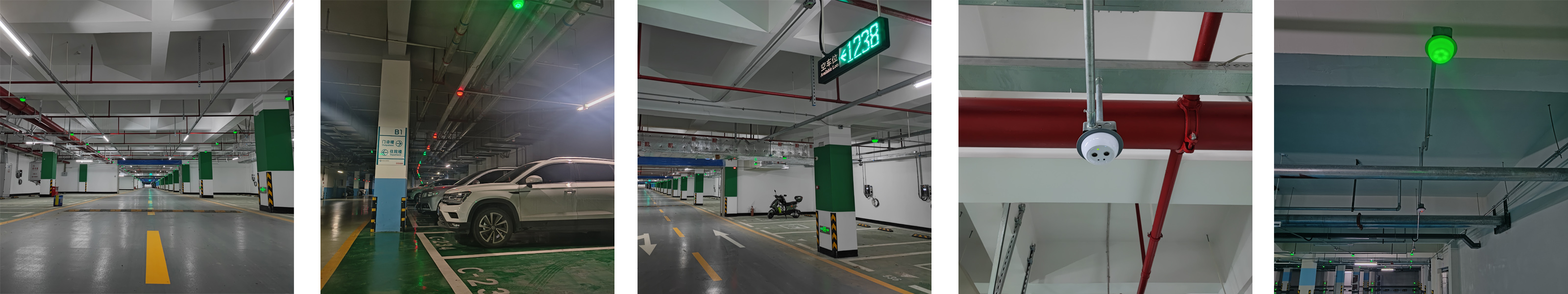

Case Images

Split Type Parking Sensor Parking Space Indicator Light RGB LED Detector PGS

Parking Sensor Split Type Parking Space Indicator Light RGB LED detector PGS
