Parameter
Parking Sensor WBPT01 Ultrasonic Split-Type LED RGB Color Ultrasonic Detector
| Model | WBP-T01 | Operation Voltage | DC 10～28V(Rated 24V) |
| Dimension | φ120*45mm | Operation Temperature | -30℃ ~ +75℃ |
| NW | 140g | RH | 40%～70%RH |
| Installation Height | 1.5～4m(suggest 2.5m) | Power consumption | <0.5W |
| Material | ABS engineering plastics | Communicate Mode | RS485 |
| Range detection error | 2cm | Communicate Distance | ≤300m |
| Detection accuracy | ≥99% | Supply distance | ≤200m(RVV0.75*4) |

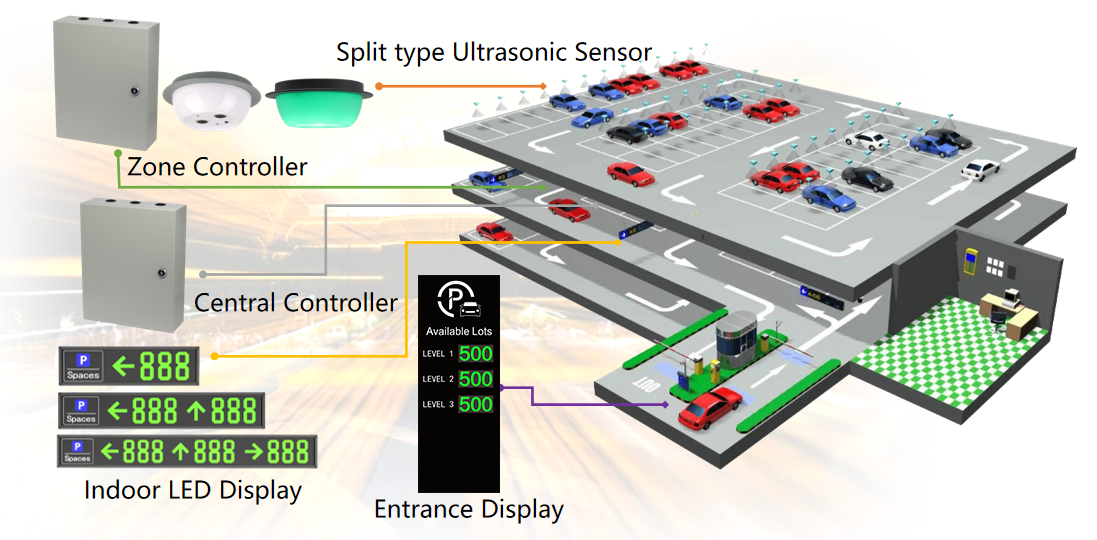

System architecture
Through the split-type ultrasonic parking detector installed above each parking space, the parking information of each parking space is collected in real time. When there is a car parked, the ultrasonic parking detector controls the light above the parking line from green to red. The indoor zone controller connected to the detector will collect the information of each connected detector in the way of polling, and upload it to the centralized controller for data processing, and send the processed parking space data to the guidance screen of each parking space in the parking lot to display the empty parking space information, so as to achieve the function of guiding the vehicle into the empty parking space.
Product Description
1) Ultra-wide detection range Settings to meet a variety of different engineering installation environments;
2) The receiving circuit adopts a variety of combined judgment methods to enhance the anti-interference and detection stability of the equipment;
3) Advanced intelligent learning anti-jamming algorithm is adopted to solve the interference of lane, side vehicle and counter shooting, and the detection accuracy rate is more than 99%;
4) The whole through strict static electricity, lightning and surge, group pulse and other tests to ensure reliable use under the influence of harsh electrical environment;
5) Mobile APP debugging, address automatically superposition, one-click parameter configuration, improve debugging efficiency.
6) Support remote upgrade.
| | |
| Q1. What is your terms of packing? | A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,We can pack the goods in your branded boxes after getting your authorization letters. |
| Q2. What is your terms of payment? | A: T/T 100% before delivery. We'll show you the photos of the products and packages before you pay the balance. |
| Q3. What is your terms of delivery? | A: EXW, FOB, CFR, CIF, DDU. |
| Q4. How about your delivery time? | A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. |
| Q5. Can you produce according to the samples? | A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures. |
| Q6. What is your sample policy? | A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost. |
| Q7. Do you test all your goods before delivery? | A: Yes, we have 100% test before delivery |
| Q8: How do you make our business long-term and good relationship? | A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. |
Parking Sensor WBP-T01 Ultrasonic Split-Type LED RGB Color Ultrasonic Detector
