Specification
Parking Sensor WBPT02F Ultrasonic Parking Guidance System All In One Occupancy
| Model | WBP-T02F | Operation Voltage | DC 10~28V(Rated24V) |
| Dimension | φ126*125mm | Operation Temperature | -30℃ ~ +75℃ |
| Outward Material | Gray ABS engineering plastic | RH | 40%~70%RH |
| NW | 180g | Detector response time after parking | < 2s |
| Indicator Light Type | 7 color high light LED | Range detection error | 2cm |
| | Level :3.9~4.2m(away from the stop line) | Communicate Mode | RS485 |
| Vertical: 2 ~ 3m (recommended 2.5-2.8m) | Communicate Interface | 2*RJ45 interface |
| Detection accuracy | ≥99% | Communicate Distance | ≤300m(CAT5e) |
| Power Consumption | <1W | Supply distance | ≤150m(CAT5e) |
System architecture
Product Description
Through the front-mounted ultrasonic parking detector installed directly above each parking space line, the parking information of each parking space is collected in real time. When there is a vehicle parked in the parking space, the integrated indicator light of the front mounted ultrasonic parking detector changes from green to red. The indoor zone controller connected to the detector will collect the information of each connected detector in the way of polling, compress and encode the data according to certain rules, and then feed back to the indoor centralized controller. The indoor centralized controller will complete the data processing, and send the processed parking space data to the guidance screen of each parking space in the parking lot to display the empty parking space information. Thus to achieve the function of guiding the vehicle into the spare parking space.
Product Features
1) The integration of parking detectors and indicators greatly reduces material costs and construction costs, and also compress the construction period;
2) Using two independent ultrasonic circuit design, large detection zone, independent work, greatly improve the detector life and reliability;
3) Advanced intelligent learning anti-jamming algorithm is adopted to solve the interference of lane, side vehicle and counter shooting, and the detection accuracy rate is more than 99%;
4) The parking status indicator adopts bright LED lamp bead design, low power consumption, long service life, lamp bead can have wide viewing Angle and long viewing distance;
5) The detector is installed on the bridge above the front of each parking space, effectively avoiding the obstruction of the column, and the installation effect is more orderly and beautiful;

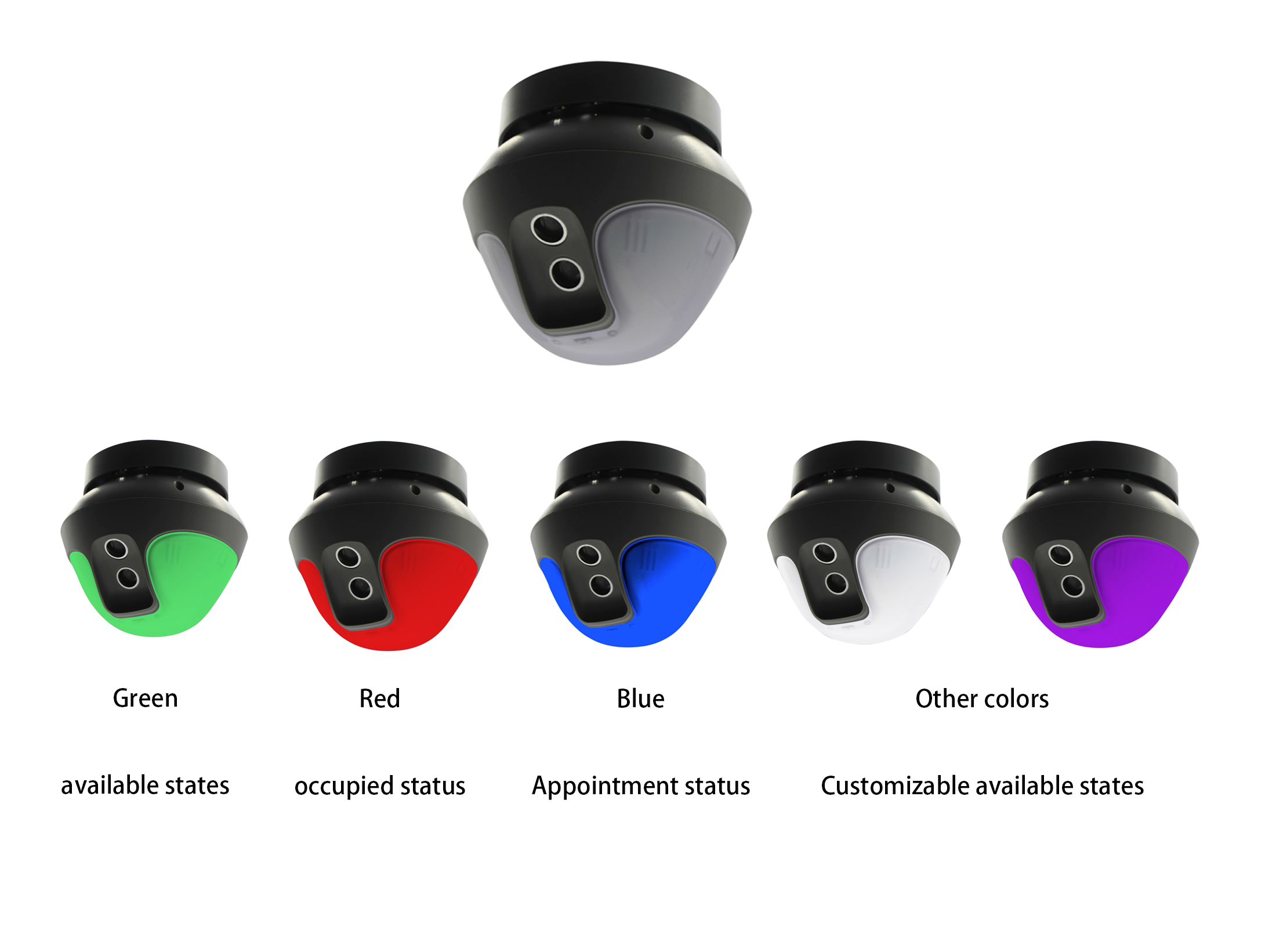

Product display
FAQ
| | |
| Q1. What is your terms of packing? | A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,We can pack the goods in your branded boxes after getting your authorization letters. |
| Q2. What is your terms of payment? | A: T/T 100% before delivery. We'll show you the photos of the products and packages before you pay the balance. |
| Q3. What is your terms of delivery? | A: EXW, FOB, CFR, CIF, DDU. |
| Q4. How about your delivery time? | A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. |
| Q5. Can you produce according to the samples? | A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures. |
| Q6. What is your sample policy? | A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost. |
| Q7. Do you test all your goods before delivery? | A: Yes, we have 100% test before delivery |
| Q8: How do you make our business long-term and good relationship? | A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. |
