| Model: | (three-layer) |
| Box Size: | 690 * 210 * 65mm (single layer) |
| 690 * 370 * 65mm (double-layer) |
| 690 * 530 * 65mm (three layers) |
| Vertical pole size: | 1 2 00mm |
| Appearance material: | Aluminum alloy outer frame |
| illuminant: | red |
| Levels of Protection: | IP65 |
| Working Temperature: | - 40℃ ~ +85℃ |
| Working Voltage: | AC 110～240V |
| Power Dissipation: | 15 W (one-way) |
| Ambient Humidity | 90% RH (no condensation) |
| Communication Mode: | RS485 |
| Communication Distance: | ≤300m |
| Individual Digital Display Dimensions | 160*160 mm |
| P10 Module Size | 160*320mm |
Table 3.1 Technical Parameters Table of outdoor wired guide screen
Product Description

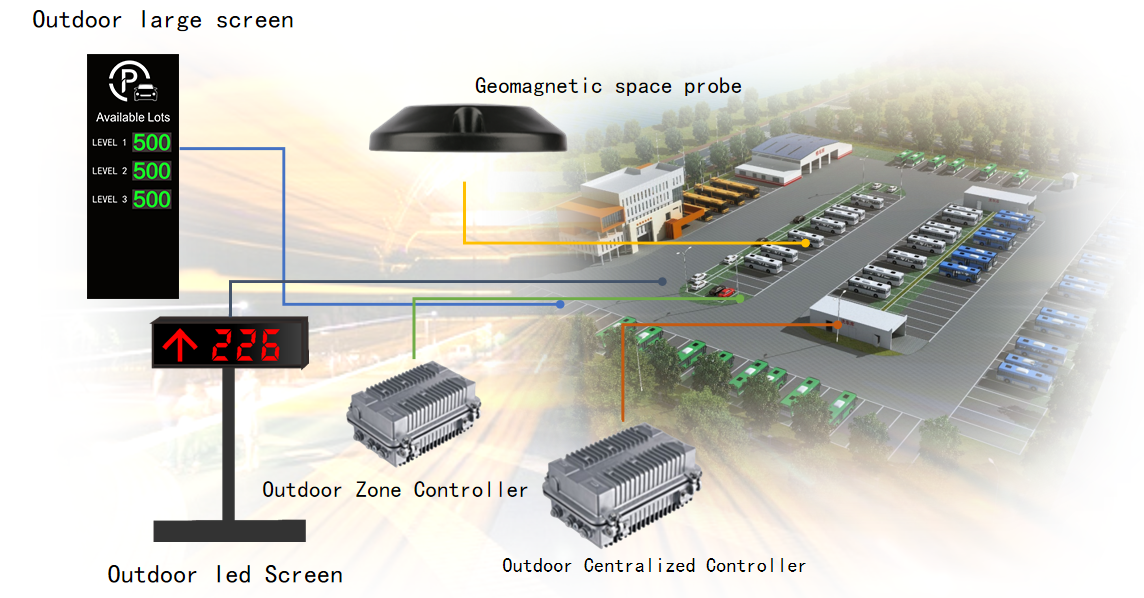

The outdoor guide screen, strategically positioned at significant fork roads within the parking lot, is an essential component
for efficient parking management. Comprising a high brightness P10 module, drive unit, bracket and other integral parts, it
functions by receiving output data from the outdoor centralized controller. Subsequently, it vividly showcases the quantity of
vacant parking spaces in the area via numbers and arrows, facilitating vehicle owners to swiftly identify available spots. This
not only guarantees the seamless operation of the parking lot but also optimizes the utilization of parking spaces.
Customization options for one-way, two-way, and three-way outdoor guide screens are available to meet diverse requirements.
Product features:
1) The guide screen adopts tempered glass panel + cold steel baking paint shell, the appearance of simple atmosphere;
2) The shell adopts waterproof and dustproof design, and the use of ultraviolet resistant paint, not easy to change color;
3) The guide screen has short circuit, overvoltage, overcurrent, overload protection;
4) Red and green two color instructions can be clearly recognizable, high luminous intensity, visible distance, can be wide perspective.
Product installation

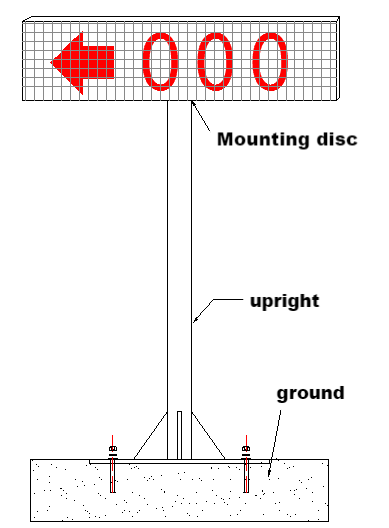

The outdoor wired guide screen is installed in the column mode, and the power cord is connected nearby and introduced into the guide screen box. The installation diagram is shown in Figure 4.1:
Figure 4.1 Installation diagram of outdoor wired guide screen
