Specification
| Product Model | WBP-K02N |
| Specification and Dimension | 320*260*90 mm |
| Net Weight | 3.2 Kg |
| Sheathing Material | galvanized sheet |
| Power Dissipation | ≤2 W |
| Node Capacity | Twenty-five |
| Working Voltage | AC 110～240V |
| Working Temperature | -30℃ ~ +75℃ |
| Ambient Humidity | 90% RH (no condensation) |
| Communication Mode | 2-way CAN @ 20 kbps |
| Communication Distance | ≤1000 m |
Table 3.1 Technical parameters table of indoor node controller
Product Description
The indoor node controller summarizes all the parking information in the area, uploads the data coding to the indoor centralized controller, receives the available parking information data from the indoor centralized controller, and then transmits it to the indoor zone controller. Indoor node controller can effectively solve the problem of insufficient capacity; or the stability of system communication.
Product features
1) Using the international advanced 32-bit ARM processor, full industrial grade design, to ensure the stability and reliability of products;
2) The whole system controller can be upgraded remotely, convenient for system maintenance and upgrade, always to meet the needs of users;
3) Using CAN bus industrial grade communication design, signal communication is stable, reliable, transmission distance up to 1 km;
4) The equipment has the functions of short circuit, over-voltage and overload protection to prevent the electrical damage to the relevant equipment caused by wiring errors during construction;
5) The overall industrial design, after strict electrostatic, lightning and surge, group pulse and other tests, effectively ensure the reliable use of equipment;
6) Regional control can be group management to realize the optimal management of network communication, data conversion, data grouping processing and other functions.
7) Support for remote upgrade.
Product Installation

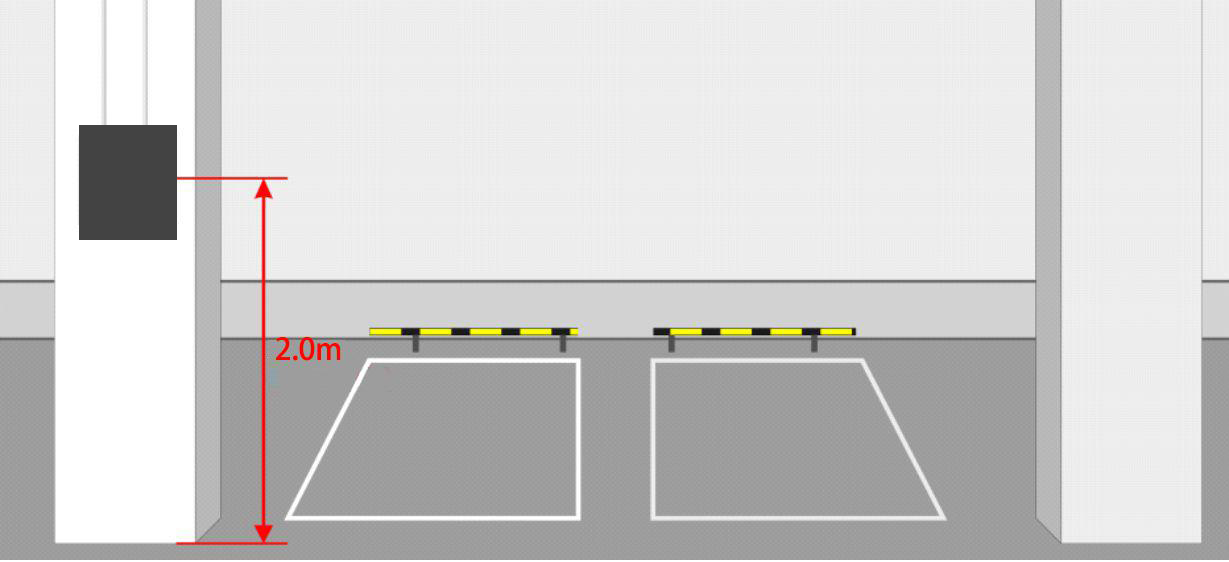

Indoor node controller is generally installed on the column or wall, it is recommended to install the height of 2 meters or above. The installation diagram is shown in Figure 4.1:
Figure 4.1 Installation diagram of the video area controller
